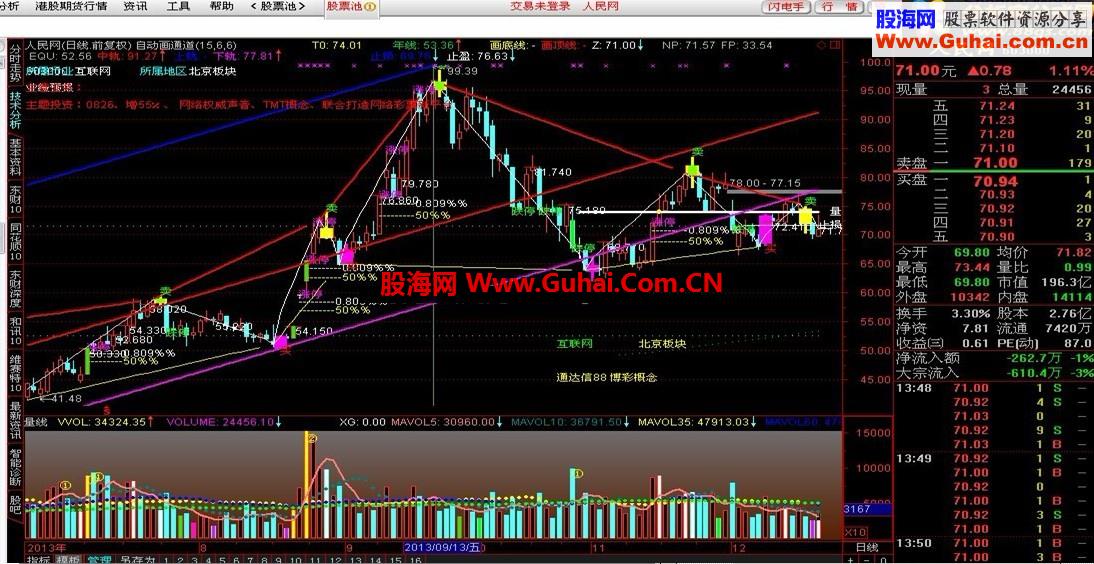

通达信动画通道源码图

DRAWGBK(1,RGB(0,0,0),RGB(0,0,0),0,'63755',0); DRAWKLINE(HIGH,OPEN,LOW,CLOSE);
 VAR1:=ZIG(3,10)<REF(ZIG(3,10),1) AND REF(ZIG(3,10),1)>REF(ZIG(3,10),2);{ZIG 有未来}
 VAR2:=ZIG(3,10)>REF(ZIG(3,10),1) AND REF(ZIG(3,10),1)<REF(ZIG(3,10),2);
 STICKLINE(VAR1,C,O,8,0),COLORYELLOW,LINETHICK2;{高位黄色}
 STICKLINE(VAR1,C,O,3,0),COLORYELLOW,LINETHICK2;{高位黄色}
 STICKLINE(VAR1,H,L,1,0),COLORYELLOW,LINETHICK2;{高位黄色}
 STICKLINE(VAR2,C,O,8,0),COLORFF00FF,LINETHICK2;{底位红色}
 STICKLINE(VAR2,C,O,3,0),COLORFF00FF,LINETHICK2;{底位红色}
 STICKLINE(VAR2,H,L,1,0),COLORFF00FF,LINETHICK2;{底位红色};
  DRAWTEXT_FIX(ISLASTBAR,0,0,0,CODE);
 金叉:=CROSS(KDJ.J,KDJ.K);
 STICKLINE(金叉,C,C,10,0)COLORRED;
 DRAWNUMBER(金叉 AND C>=O,C+0.1,C);
 DRAWNUMBER(金叉 AND C<O,C-0.1,C);
 涨停:=(CLOSE/REF(CLOSE,1)>=1.1-0.01) AND C=H;
 HJJ:=(C*0.809-C)/10;
 DRAWTEXT(涨停,(C+REF(C,1))/2,'---------50%%'),COLORYELLOW;
 DRAWTEXT(涨停,C+HJJ,'---------0.809%%');
 {量能平台}
 N:=30;
 T1:=CONST(HHVBARS(V,N));
 T0:IF(CURRBARSCOUNT<=N+7,CONST(IF(T1=0,C,REF(C,T1))),DRAWNULL),LINETHICK3;
 IF(CURRBARSCOUNT=T1+1,T0,DRAWNULL),CIRCLEDOT;
 DRAWTEXT(ISLASTBAR,T0,'　量能平台');
 STICKLINE(ISLASTBAR,HHV(C,5)*0.95-0.01,HHV(C,5)*0.95,100,0),COLORWHITE,LINETHICK3;
 DRAWNUMBER(ISLASTBAR,HHV(C,5)*0.95-0.01,HHV(C,5)*0.95),LINETHICK3;
 止损点:=(ISLASTBAR,HHV(C,5)*0.95-0.01,HHV(C,5)*0.95),LINETHICK3;
 DRAWTEXT(ISLASTBAR ,止损点,'               止损点'),LINETHICK3;
 年线: DMA(MA(CLOSE+REF(CLOSE,5)/CLOSE*0.098,250),VOL),LINETHICK2,POINTDOT,COLOR30CC00;
 DRAWTEXT(HIGH>=REF(CLOSE,1)*1.095,HIGH,'涨停'),COLORMAGENTA;
 STICKLINE(V/REF(V,1)>2,OPEN,CLOSE,1,0),COLORGREEN;
 DRAWTEXT(REF(CLOSE,1)>=LOW*1.095,LOW,'跌停'),COLORGREEN;
 DRAWTEXT(CROSS(REF(ZIG(3,10),1),ZIG(3,10)),H*1.01,'卖'),COLORGREEN;A:=TROUGH(3,10,1);
 B:=TROUGHBARS(3,10,1)=0;
 画底线:DRAWLINE(B,A,B,A,0),COLORYELLOW;
 D:=PEAK(3,10,1);
 E:=PEAKBARS(3,10,1)=0;
 画顶线:DRAWLINE(E,D,E,D,0),COLORRED,LINETHICK2;
 Z:ZIG(3,10),COLORFFFFFF;TC1:=IF(H=HHV(H,8*UR),H,DRAWNULL);
 TC2:=CONST(BARSLAST(TC1=H))+1;
 UPPER:=CONST(IF(TC2=1,H,REF(H,TC2-1)));
 BC1:=IF(L=LLV(L,8*LR),L,DRAWNULL);
 BC2:=CONST(BARSLAST(BC1=L))+1;
 LOWER:=CONST(IF(BC2=1,L,REF(L,BC2-1)));
 LP:=CURRBARSCOUNT<=BC2 AND L=LOWER;{低点定位}
 HP:=CURRBARSCOUNT<=TC2 AND H=UPPER;{高点定位}
 STICKLINE(IF(BC2>TC2,HP,LP),LOWER,UPPER,0,0),COLOR628962;
 STICKLINE(IF(BC2>TC2,LP,HP),LOWER,UPPER,0,0),COLOR628962;
 NOD:=(IF(TC2>BC2,TC2,BC2)-IF(TC2>BC2,BC2,TC2));{用时}
 LR1:=FORCAST(C,NOD+1);
 NP:IF(CURRBARSCOUNT<=MAX(BC2,TC2),CONST(IF(MIN(TC2,BC2)=1,LR1,REF(LR1,MIN(TC2,BC2)-1))),DRAWNULL),POINTDOT,COLOR93BDA8;{近点}
 LR2:=SLOPE(C,NOD+1);
 LR3:=CONST(IF(MIN(TC2,BC2)=1,LR2,REF(LR2,MIN(TC2,BC2)-1)));
 FP:NP-LR3*(NOD),POINTDOT,COLOR93BDA8;{远点}
 EQU:(NP+FP)/2,POINTDOT,COLOR93BDA8;
 AD:=ABS(NP-FP);{高差};
 DBL:=BARSLAST(BC1!=DRAWNULL)+1;
 DBH:=BARSLAST(TC1!=DRAWNULL)+1;
 BSP:=IF(BC2>TC2,DBL,DBH)-1;
 LRL:=IF(NP>FP,FP+AD/NOD*BSP,FP-AD/NOD*BSP);
 AT1:=IF(BETWEEN(CURRBARSCOUNT,BC2,TC2) AND H>LRL,H,LRL);
 AT2:=HHV(AT1-LRL,MAX(BC2,TC2));
 AT3:=CONST(BARSLAST(AT1-LRL=AT2));
 AT4:=CONST(IF(AT3=0,H,REF(H,AT3)));
 AT5:=CONST(IF(AT3=0,AT1-LRL,REF(AT1-LRL,AT3)));
 ATL:=LRL+AT5;
 UT1:=IF(BETWEEN(CURRBARSCOUNT,BC2,TC2) AND L<LRL,L,LRL);
 UT2:=HHV(LRL-UT1,MAX(BC2,TC2));
 UT3:=CONST(BARSLAST(LRL-UT1=UT2));
 UT4:=CONST(IF(UT3=0,H,REF(H,UT3)));
 UT5:=CONST(IF(UT3=0,LRL-UT1,REF(LRL-UT1,UT3)));
 UTL:=LRL-UT5;
 RH:=IF(CURRBARSCOUNT>=MIN(BC2,TC2)-10,ATL,CONST(REF(ATL,MIN(BC2,TC2)-11)));{限制高}
 RL:=IF(CURRBARSCOUNT>=MIN(BC2,TC2)-10,UTL,CONST(REF(UTL,MIN(BC2,TC2)-11)));{限制低}
 中轨:IF(NP>FP,IF(LRL<=RH,LRL,DRAWNULL),IF(LRL>=RL,LRL,DRAWNULL)),COLORRED,LINETHICK2;
 上轨:IF(NP>FP,IF(ATL<=RH,ATL,DRAWNULL),IF(ATL>=RL,ATL,DRAWNULL)),COLORBLUE,LINETHICK2;
 下轨:IF(NP>FP,IF(UTL<=RH,UTL,DRAWNULL),IF(UTL>=RL,UTL,DRAWNULL)),COLORMAGENTA ,LINETHICK2;
 STICKLINE(ISLASTBAR,HHV(C,5)*0.95-0.01,HHV(C,5)*0.95,50,0),COLORWHITE;
 DRAWTEXT(ISLASTBAR,HHV(C,5)*0.95,'止损价位'),COLORWHITE;
VAR11:=ZIG(3,13);
 STICKLINE((REF(VAR11,2) < REF(VAR11,1)) AND (VAR11 < REF(VAR11,1)),CLOSE,OPEN,5,0),COLOR00FF7F;
 AAA:=CONST(HHV(H*0.85,90));
 DRAWTEXT(CROSS(ZIG(3,10),REF(ZIG(3,10),1)),L*0.99,'买'),COLORRED;
 DRAWTEXT(CROSS(REF(ZIG(3,10),1),ZIG(3,10)),H*1.01,'卖'),COLORGREEN;
 DRAWTEXT_FIX(1,0.00,0,0,'所属行业：')COLORCYAN;
 DRAWTEXT_FIX(1,0.06,0,0,HYBLOCK),COLORWHITE;
 DRAWTEXT_FIX(1,0.14,0,0,'所属地区：')COLORCYAN;
 DRAWTEXT_FIX(1,0.20,0,0,DYBLOCK),COLORWHITE;
 DRAWTEXT_FIX(C>0,0.0,0.05,0,STRCAT('业绩预报：',EXTERNSTR(0,3))),COLORWHITE;
 DRAWTEXT_FIX(C>0,0.00,0.10,0,STRCAT('主题投资：',EXTERNSTR(0,7))),COLORRED;
 DRAWTEXT_FIX(1,0.00,0.05,0,'主营业务：'),COLORRED;
 DRAWTEXT_FIX(1,0.06,0.05,0,EXTERNSTR(0,3)),COLORWHITE;
 DRAWTEXT_FIX(ISLASTBAR,0.65,0.8,0,HYBLOCK),COLOR00FF00;
 DRAWTEXT_FIX(ISLASTBAR,0.75,0.8,0,DYBLOCK),COLOR00FFFF;
 DRAWTEXT_FIX(ISLASTBAR,0.65,0.9,0,GNBLOCK),COLORYELLOW;
 {以上为显示所属板块，地域，概念等};
止损:0.965*REF(H,1),LINETHICK0;
 止盈:1.06*REF(H,1),LINETHICK0;
